Visualizing GitHub Actions Workflows: Understanding Complex Pipelines

Q: How do jobs without needs run?

Jobs with no needs start in parallel when the workflow begins. To control order, specify the dependency explicitly with needs: [job-id]. In a diagram, the boundary between independently running jobs and sequential ones is obvious at a glance.

Q: What happens if dependencies form a cycle?

If needs forms a loop (A depends on B, B depends on A), GitHub Actions cannot run the workflow and reports an error. Cycles are hard to spot in hundreds of lines of YAML, so visualizing it as a DAG (directed acyclic graph) helps.

Visualize hundreds of lines of YAML with Mermaid.js. Maximize debugging efficiency by graphically grasping job dependencies (needs).

Tools mentioned in this article

Open the browser-based tool while you read and try the workflow immediately.

GitHub Actions Visualizer Visualize your GitHub Actions workflow YAML using Mermaid.js. Graphically display job dependencies (needs) and understand your CI/CD configuration at a glance.

The Challenge of Complexity in GitHub Actions

While GitHub Actions is incredibly powerful for automating CI/CD, workflow files (YAML) tend to become bloated as projects grow.

Visualizing GitHub Actions Workflows: Understanding Complex Pipelines

Trying to decipher “which job runs after which” or “is there a circular dependency?” from hundreds of lines of code takes more time than you might imagine.

The Benefits of Visualization

By displaying a workflow as a graphical diagram (DAG: Directed Acyclic Graph), you gain the following benefits:

Immediate Overview of the Whole Picture: See at a glance the boundaries between jobs running in parallel and those running sequentially.
Finding Bottlenecks: Identify jobs where dependencies are concentrated, providing material for considering how to speed up the pipeline.
Building Consensus within the Team: Visually share the deployment flow with non-developers (PMs, QA, etc.).

Visualizing with Mermaid.js

Mermaid.js is an open-source library that generates diagrams from text. GitHub itself supports Mermaid, allowing diagrams to be rendered within Markdown.

graph TD
    Build --> Test
    Test --> Deploy
    Test --> Security-Scan

By simply writing in this format, you can output complex dependencies as beautiful diagrams.

A Concrete Review Example

In the configuration below, deploy depends only on test, so it may proceed even if lint fails.

jobs:
  lint:
    runs-on: ubuntu-latest
  test:
    runs-on: ubuntu-latest
  deploy:
    needs: [test]
    runs-on: ubuntu-latest

In a diagram, lint appears isolated, which makes it easy to discuss “should the quality check be a deploy prerequisite?” That feeds into design decisions—whether changing deploy’s needs to [lint, test] is enough, or whether to add a build job to share artifacts.

Visualizing on DevToolKits

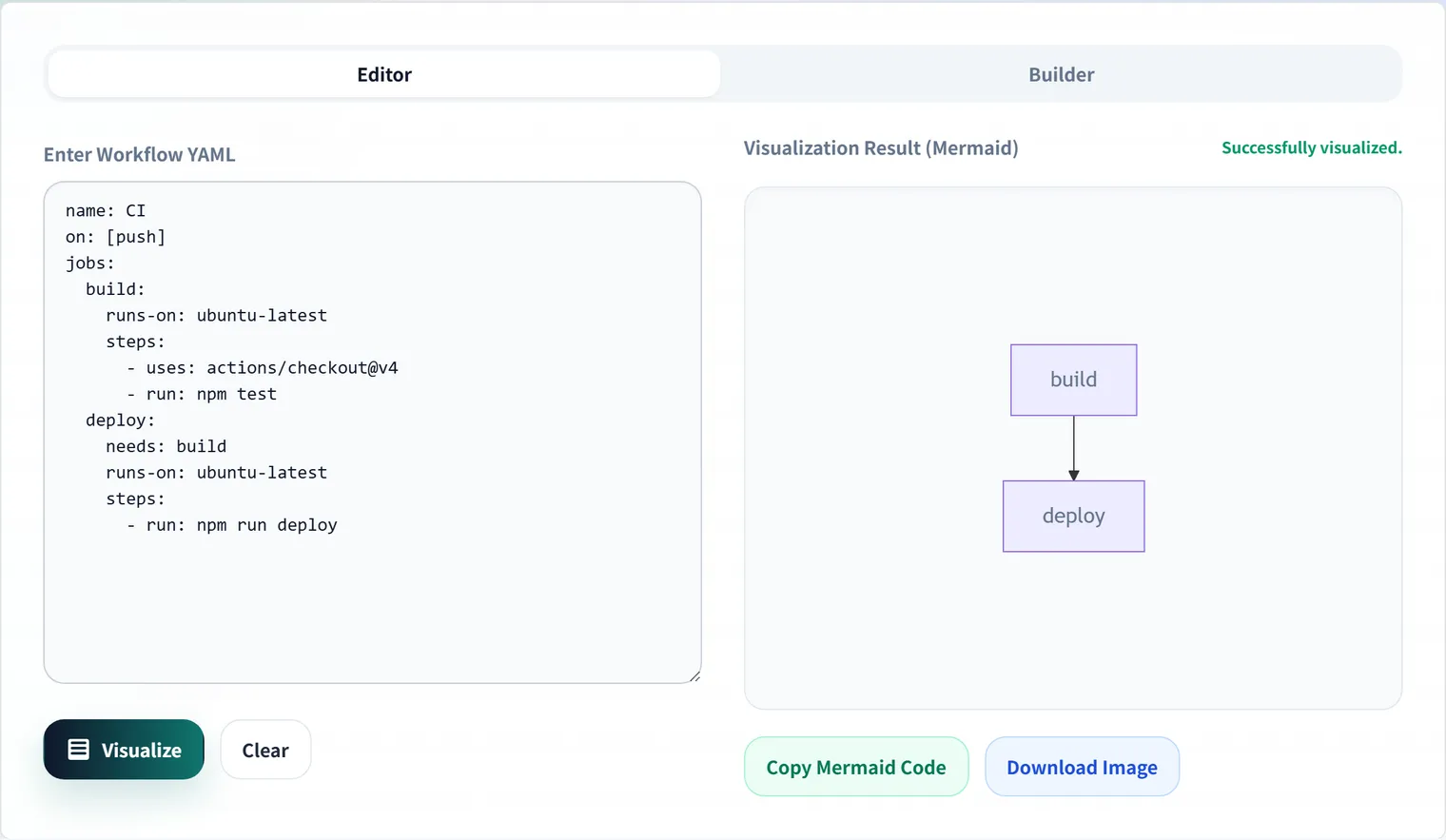

DevToolKits’ GitHub Actions Visualizer instantly converts your workflow YAML into a Mermaid-format diagram just by pasting it.

Since it operates entirely within the browser, you can safely use sensitive workflow files without ever sending them to a server.

💡 Tip: When an error occurs in a complex job configuration, we recommend first turning it into a diagram to re-confirm the execution order.

Frequently Asked Questions

How do jobs without `needs` run?

Jobs with no needs start in parallel when the workflow begins. To control order, specify the dependency explicitly with needs: [job-id]. In a diagram, the boundary between independently running jobs and sequential ones is obvious at a glance.

What happens if dependencies form a cycle?

If needs forms a loop (A depends on B, B depends on A), GitHub Actions cannot run the workflow and reports an error. Cycles are hard to spot in hundreds of lines of YAML, so visualizing it as a DAG (directed acyclic graph) helps.

Is it safe to paste workflow YAML into an external tool?

Workflows may contain secret names and deployment targets. The GitHub Actions Visualizer processes everything in your browser and never sends the YAML to a server, so you can safely diagram such files.
